Complete lift systems
The ELEVA® lift system is designed and manufactured using only high quality, world renowned lift products and technology. Our aim is to meet the exacting requirements of an increasingly demanding market.
Longevity and serviceability are high priorities; we know that today’s client is increasingly product aware and understandably we have to exceed those expectations. It is also evident that individuals have certain preferences when it comes to choosing particular elements of a lift.
We simply cannot make one single design based on the products of one particular manufacturer and expect to be successful. We have to provide a wide range of options in order to comply with directives and specifications, not to mention personal preferences and bespoke designs.
Our aim is to provide a lift system that can be installed and maintained by any suitable lift company.
In terms of quality we provide a products to compete at the ‘upper end’ of the market.
In terms of flexibility we provide a wide range of options.
In commercial terms, we believe that we offer an excellent cost/quality ratio.

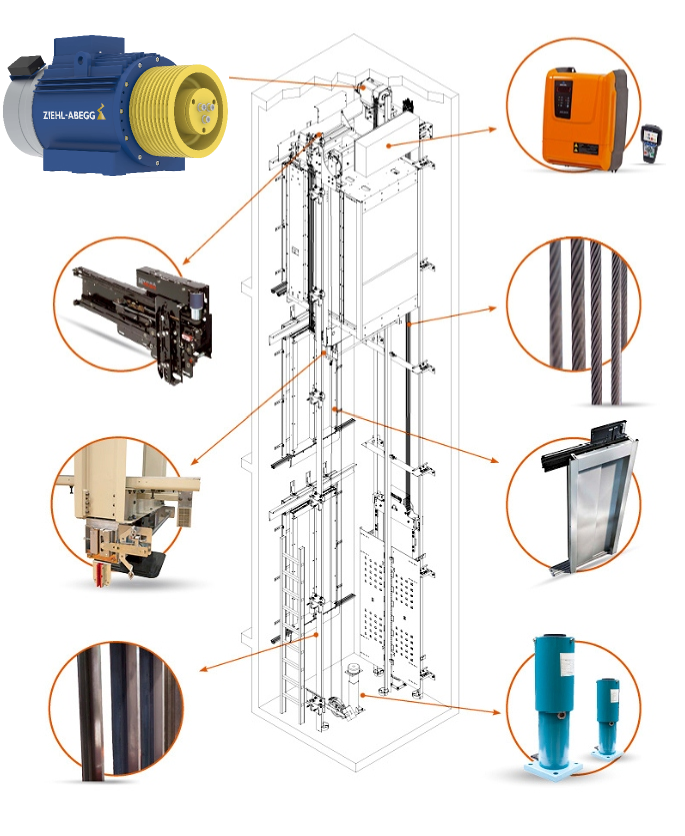

ELEVA® has been designed and produced with the following variations:-
AC Gearless Machines – Akar: Ziehl Abegg: Thyssen: Wittur:
Ropes – Pfeiffer Drako:
Electrical System Fixtures – Arkel: Butsan: Genemek: Dewhurst:
Door Systems – Meiller: Wittur: Siemens:
Car frames – Mekisan: Evatek:
Cabins – Mekisan: Evatek:
Guide rails – Savera:
Safety gear – Cobianchi:
The table below shows our standard model range. We can design and produce ‘bespoke’ solutions as required.
| Rated Load | . . | Car Width | Car Depth | Shaft Width | Shaft Depth | Door Width | . . |
|---|---|---|---|---|---|---|---|
| 320 . | A B | 900mm 1000mm | 1000mm 900mm | 1550mm 1650mm | 1430mm 1330mm | 700mm 700mm | R/L R/L |
| 400 . | A B | 1100mm 1000mm | 1000mm 1100mm | 1750mm 1650mm | 1430mm 1330mm | 800mm 800mm | R/L R/L |
| 450 . . | A B C | 1000mm 1100mm 1200mm | 1200mm 1100mm 1000mm | 1650mm 1750mm 1850mm | 1570mm 1470mm 1370mm | 800mm 800mm 800mm | R/L R/L R/L |
| 630 . . . | A B C D | 1100mm 1200mm 1300mm 1400mm | 1400mm 1300mm 1200mm 1100mm | 1750mm 1850mm 1950mm 2050mm | 1770mm 1670mm 1570mm 1470mm | 900mm 900mm 900mm 900mm | R/L R/L R/L R/L |
| 800 . . . | A B C D | 1350mm 1250mm 1400mm 1450mm | 1400mm 1500mm 1350mm 1300mm | 2100mm 2000mm 2150mm 2200mm | 1820mm 1920mm 1770mm 1720mm | 900mm 900mm 900mm 900mm | C C C C |
| 1000 . . . | A B C D | 1100mm 1300mm 1600mm 1750mm | 2100mm 1750mm 1400mm 1300mm | 1850mm 2050mm 2350mm 2500mm | 2480mm 2130mm 1780mm 1680mm | 900mm 900mm 1100mm 1200mm | R/L R/L C R/L |
| 1275 . | A B | 1200mm 2000mm | 2300mm 1400mm | 2080mm 2880mm | 2670mm 1770mm | 1100mm 1100mm | R/L R/L |
| 1600 . | A B | 1400mm 2100mm | 2400mm 1600mm | 2300mm 3000mm | 2770mm 1970mm | 1300mm 1300mm | R/L R/L |
| 2000 . | A B | 1500mm 2350mm | 2700mm 1700mm | 2400mm 3250mm | 3100mm 2100mm | 1300mm 1300mm | R/L R/L |
| 2500 | A | 1800mm | 2700mm | 2700mm | 3100mm | 1300mm | R/L |
| Rated Load | Rated Speed | Head Room | Rated Speed | Pit Height | |||
| 320- 620kg | 1.00 m/s 1.60 m/s | 3200mm 3330mm | 1.00m/s 1.60m/s | 1100mm 1250mm | |||
| 800- 1000kg | 1.00 m/s 1.60 m/s | 3300mm 3430mm | |||||
| 1275- 2500kg | 1.00 m/s 1.60 m/s | 3450mm 3580mm |
